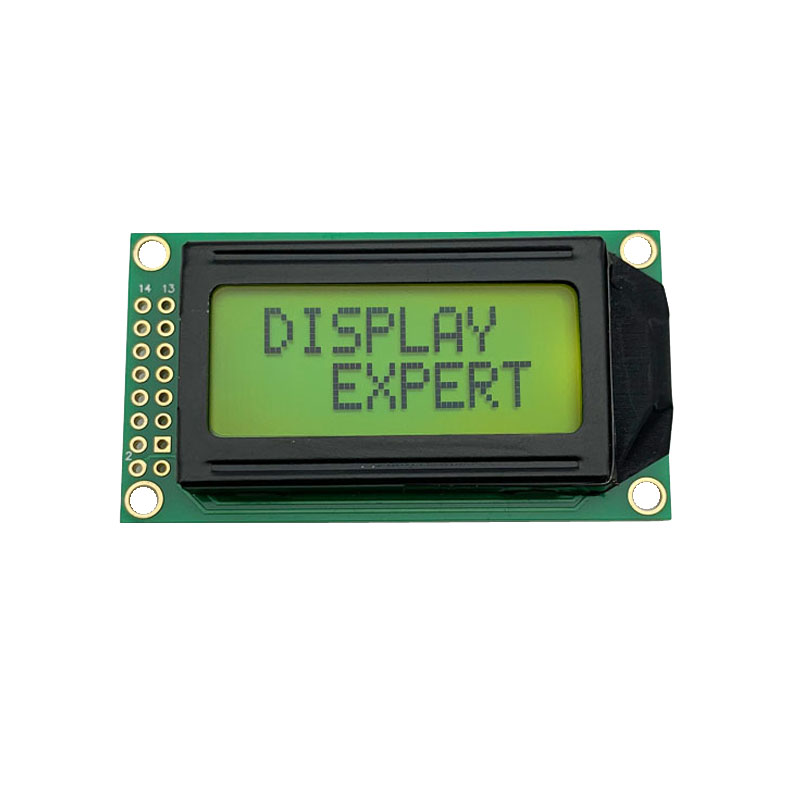

0802 Character LCD Display Y-G COB STN LCD Module
As the professional manufacturer, we would like to provide you Character Mono LCD Display. SC0802001-V01 is 8 character 2 lines 8×2 character LCD display with STN COB Yellow Grenn backlight. This display is built in SPLC780D Driver IC with 16 pin 6 o'clock viewing angle.
●Type: Character
●Mode: STN/Y-G
●Product No: SC0802001-V01
●Size: -
●Resolution: 8*2
●Outline Dimension: 28.2×32.3×2.1
●Active Area: 27.45*11.50
●Interface: 8bit MCU
●IC: SPD0301ZD
●Brightness: -
●Touch Screen: No
●View Direction: 6
●Pin No: 16
●Shape: Rectangle

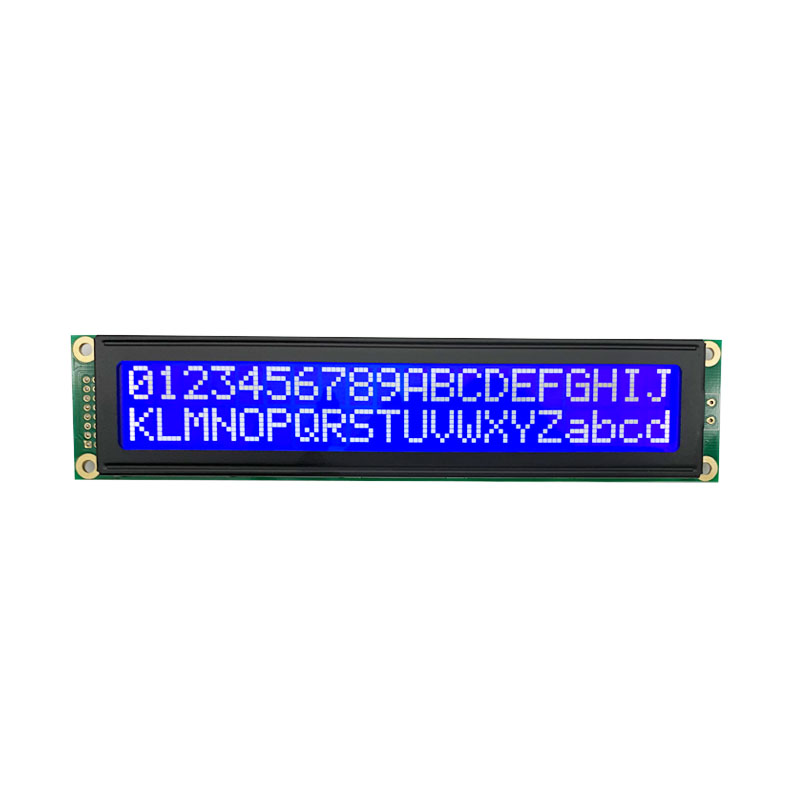

2002 Character LCD Display STN Negative BLUE
SC2002001-V01 is a Character LCD Display with 20*2 resolution, it built in with AIP31066 IC, 16 PIN, 6 o'clock View direction.
●Type: Character
●Mode: STN-Blue
●Product No: SC2002001-V01
●Size: -
●Resolution: 16*2
●Outline Dimension: 116*37*13.2
●Active Area: 85*18.6
●Interface: 8bit MCU
●IC: AIP31066
●Brightness: -
●Touch Screen: No
●View Direction: 6
●Pin No: 16
●Shape: Rectangle
General Specification
| Item | Standard Value | Unit |
| Display Type | 20 Characters x 2 Lines | Mm |
| LCD Type | STN,NEGATIVE(BLUE),TRANSMISSIVE | Mm |
| Driver Condition | LCD Module : 1/16 Duty , 1/5 Bias | Mm |
| Viewing Direction | 6 O’Clock | Mm |
| Backlight Type | SIDE WHITE | Mm |
| Interface | 8-bit MPU interface | – |
| Driver IC | AIP31066 | – |
| Outline Dimension | 116(L) * 37(W) * Max 13.2(T) | mm |
| Viewing Area | 85(L) * 18.6( W) | mm |
| Dot size | 0.61(W) ´ 0.63(H) | mm |
| Dot pitch | 0.66(W) ´ 0.69 (H) | mm |
| Character size | 3.25(W) ´ 5.39(H) | mm |
| No. | Symbol | Function |
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7–14 | DB0-DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply – (0V) |
