Lvds Tft Lcd Display

You can rest assured to buy customized Lvds Tft Lcd Display from us. The LVDS output interface uses an extremely low voltage swing (about 350mV) to transmit differential, low-voltage differential signals through two PCB traces or a pair of balanced cables. With the help of the LVDS output interface, the signal can be transmitted to the differential PCB line or balanced cable at a speed of hundreds of Mbit/s. Because of its low noise and low power consumption, it realizes low voltage and low current drive. The LVDS interface of TFT LCD has been widely used in LCD monitors of 17 inches and above. The LVDS output interface of the LCD screen can be divided into the following four types:

1. TFT LCD screen single channel 6-bit LVDS output interface

This interface uses single-channel transmission, each primary color signal uses 6 bits of data, a total of 18 bits of RGB data, so it is also called 18-bit or 18-bit VDS interface.

2. TFT LCD screen dual 6-bit LVDS output interface

This interface uses dual-channel transmission, each primary color signal also uses 6 bits of data, odd channels and even channels are 18 bits each, and RGB data totals 36 bits, so it is called 36-bit or 36-bit BitLVDS interface.

3. TFT LCD single channel 8-bit 1TL output interface

This interface uses single channel transmission, each primary color signal uses 8-bit data, RGB data is 24 bits in total, so it is also called 24-bit or 24-bit BitLVDS interface.

4. TFT LCD dual 8-bit 1TL output interface

This interface uses bidirectional transmission, each primary color signal uses 8-bit data, odd channels and even channels are 24 bits each, RGB data is 48 bits in total, so it is called 48-bit or 48-bit BitLVDS interface.

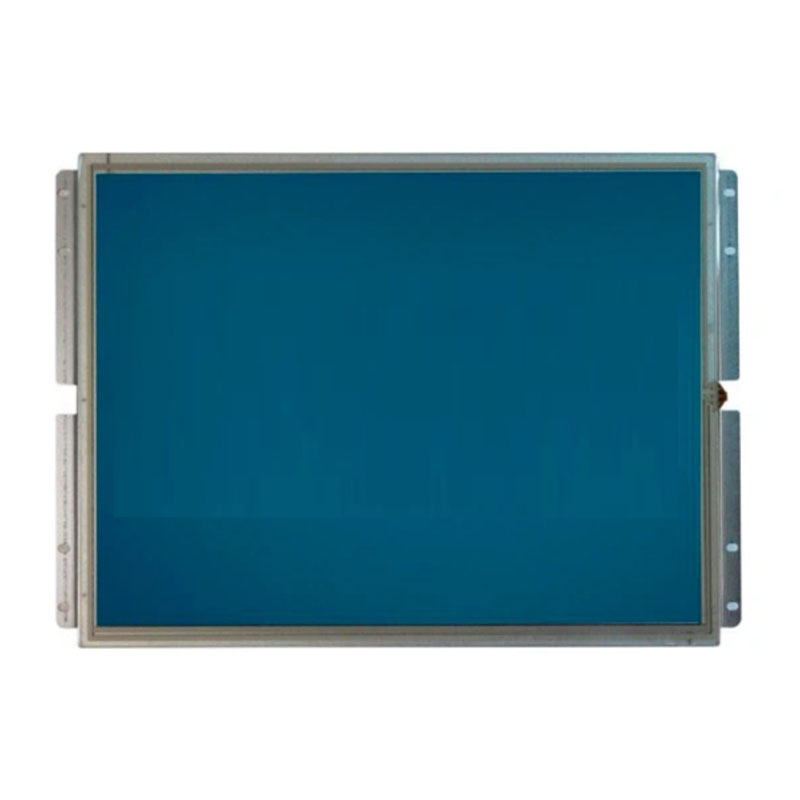

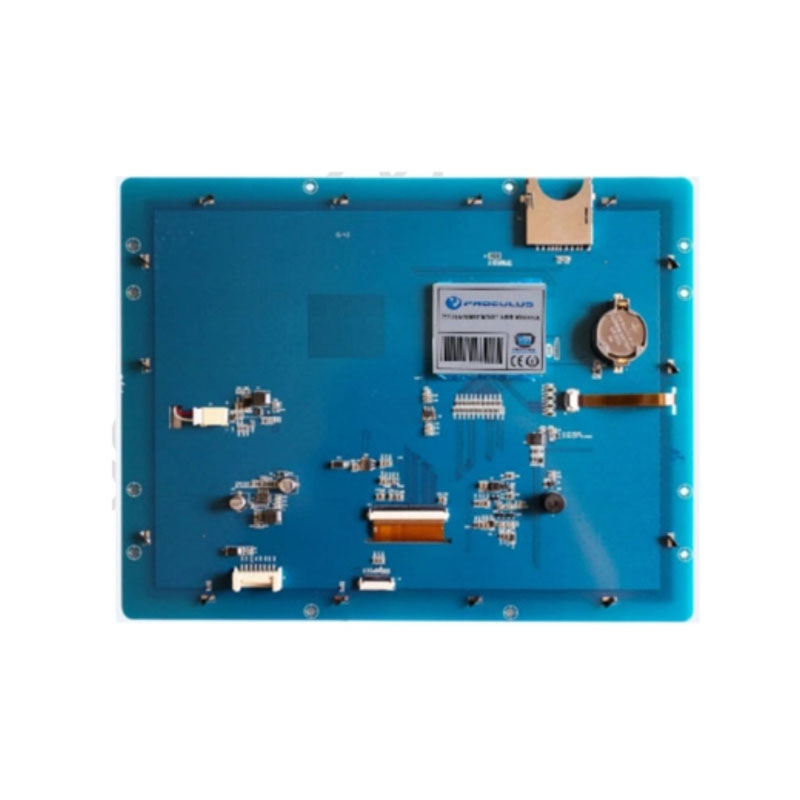

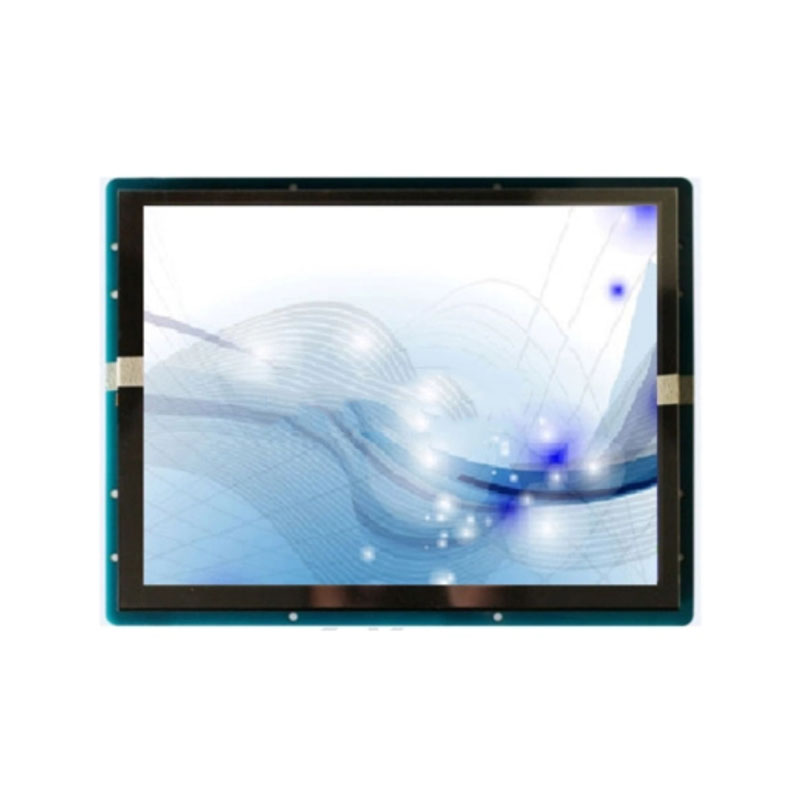

Features of 15.0 Inch 1024*768 LCD Module

Support RS232/TTL/CMOS, the highest baud rate can reach 921600bps;

Support audio function;

Support hardware JPG decoding, improve storage efficiency and speed up display speed;

Support offline batch download via USB flash drive, improve download efficiency and reduce operator requirements;

Support backlight brightness adjustment and automatic standby screen protection function;

Support multi-language font library, picture and QR code display;

Support numeric and English input, with customizable keyboard interface;

Support 90 degree, 180 degree, 270 degree screen rotation, adjustable visual angle;

Easy-to-use UnicView graphical user interface development, no coding skills required;

Immediate operation after power-on, no system loading time;

Excellent electromagnetic compatibility.

Specifications of 15.0 Inch 1024*768 LCD Module
