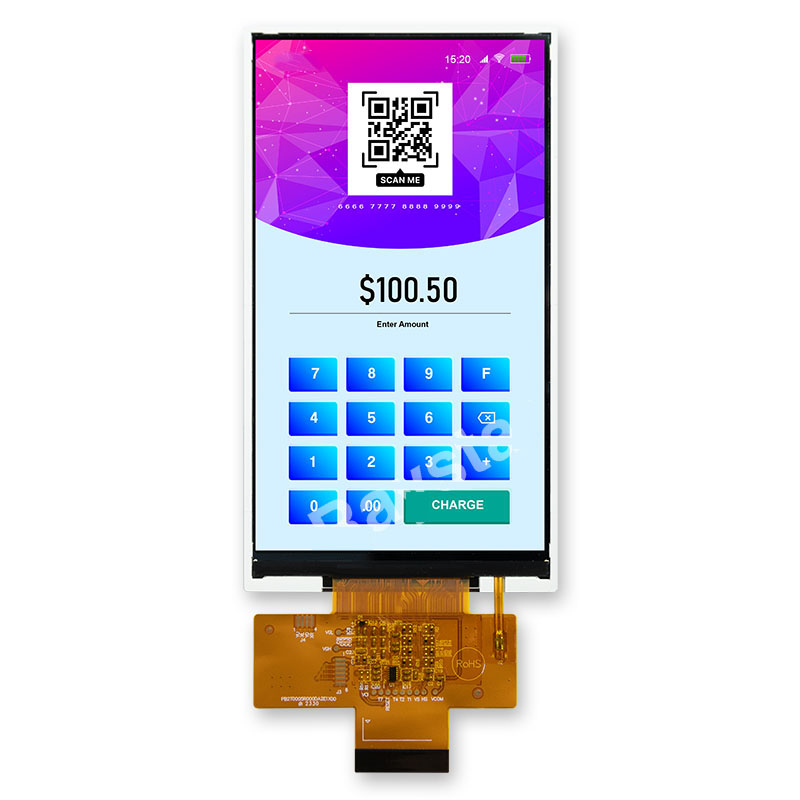

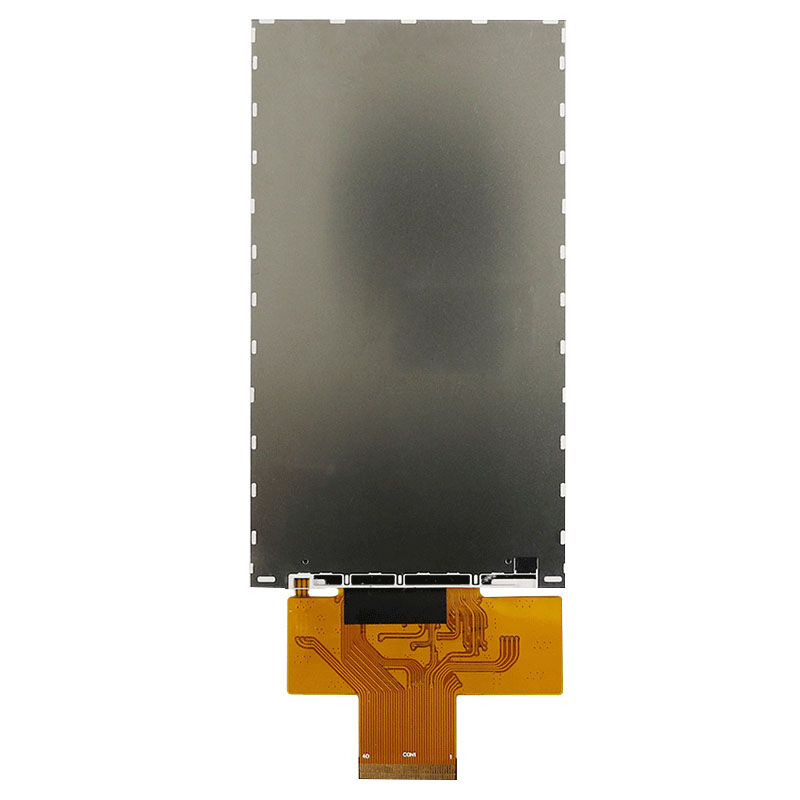

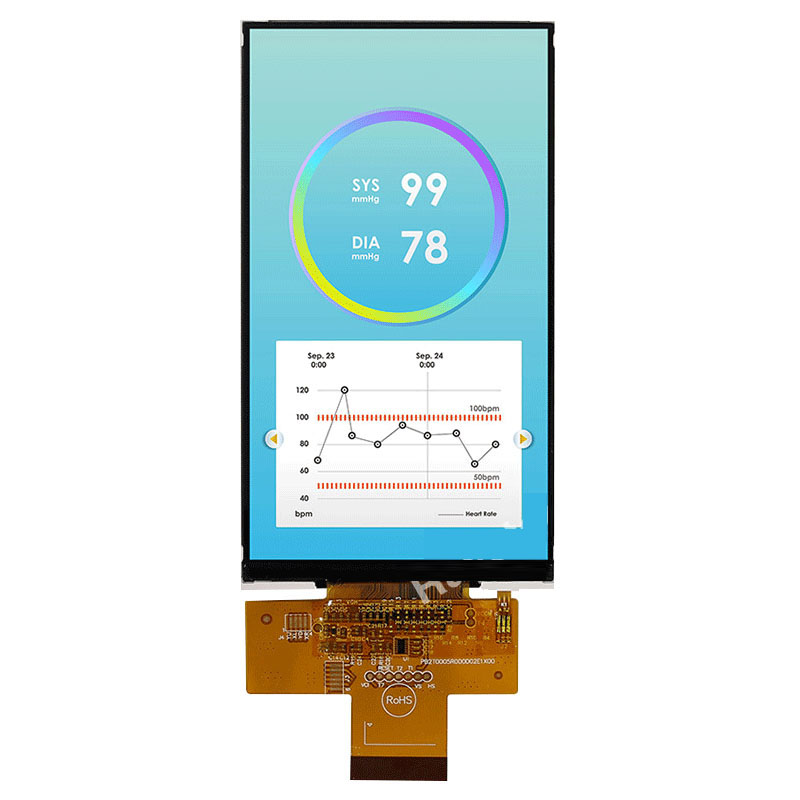

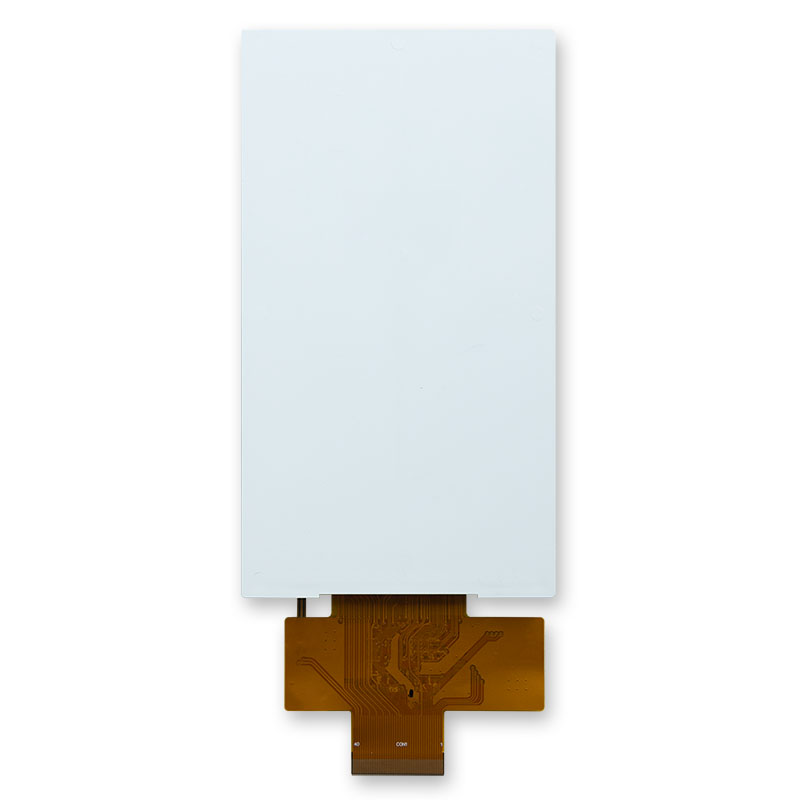

5" IPS, MIPI TFT LCD Panel
Model No. RF3500D-AYW-MNN
You can rest assured to buy Mipi Tft Lcd Display from our factory.
The RF3500D-AYW-MNN is a high-performance module with a 5.0-inch TFT-LCD display using amorphous silicon TFT technology as a switching device. Its dimensions are 66.10(W) × 120.4(H) × 1.85(D) and the effective display area is 62.1(W) × 110.4(H) mm. The display has a resolution of 720x1280 pixels, an aspect ratio of 16:9, and a viewing angle range of 80/80/80/80, ensuring an excellent visual experience. The TFT IC driving the display is ILI9881C.
This product is RoHS-compliant, the display interface uses 4-channel MIPI, and the backlight is a common white LED. Its contrast ratio is 800:1 and the typical brightness is 300 cd/m2. The supply voltage range is 2.5V to 3.6V, the operating temperature range is -20℃ to +70℃, and the storage temperature can reach -30℃ to +80℃, enabling it to operate stably in various environments.
| ITEM | DIMENSION |
| TFT Series | Standard TFT LCD, IPS TFT LCD |
| Size (Diagonal) | 5 |
| Dot Matrix / Resolution | 720 × 3(RGB) × 1280 |
| Module Dimension | 66.10(W) × 120.4(H) × 1.85(D) |
| Active Area | 62.1(W) × 110.4(H) |
| Dot / Pixel Pitch | 0.08625(W) × 0.08625(H) |
| LCD Type | TFT, Normally Black, Transmissive |
| View Direction | 80/80/80/80 (IPS) |
| Aspect Ratio | 16:9 |
| Backlight Type | LED, Normally White |
| Control Board | No |
| TFT Driver IC | ILI9881C or Equivalent |
| Interface | 4-Lanes MIPI DSI |
| Touch Panel | Without Touch Panel |
| Surface | Glare |
| Brightness | 300 |
| Mounting Hole | No |
| Operating Temperature | -20~+70 |
| Storage Temperature | -30~+80 |
Typical Operation Conditions
| ITEM | SYMBOL | VALUES | UNIT | ||
| MIN | TYP | MAX | |||
| Power supply for analog circuit | VCI | 2.5 | 3.3 | 3.6 | V |
| Power supply for logic circuit | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Current for Driver | IDD | - | 44 | mA | |
Backlight Driving Conditions
| PARAMETER | SYMBOL | MIN | TYP | MAX | UNIT |
| LED current | ILED | - | 40 | - | mA |
| LED voltage | VLED+ | 19.6 | - | 23.8 | V |
| LED Life Time | 30,000 | - | - | Hr |
