| Model | Material | Color | Description |
| 10022-1 | GaAlAs | Blu-ray | Common cathode |
| 10022-2 | GaAlAs | Blu-ray | Common cathode |
| Note: The color of this Seven-Segment LED Display can be customized according to customer needs | |||
As the professional manufacturer, we would like to provide you RGB Seven-Segment LED Display.1. This product has rich display colors, and can display white light, red light, blue light, green light..., different color effects; it can also achieve color combinations to achieve colorful effects;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The product structure is compact and can be customized according to customer requirements, including external dimensions and height;
4. The Seven-Segment LED Display has good display effect and high brightness. It can be used in an environment with high light illumination and the display content is clear;
5. Long life, our company's products are made of excellent materials, advanced processing technology, long light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle

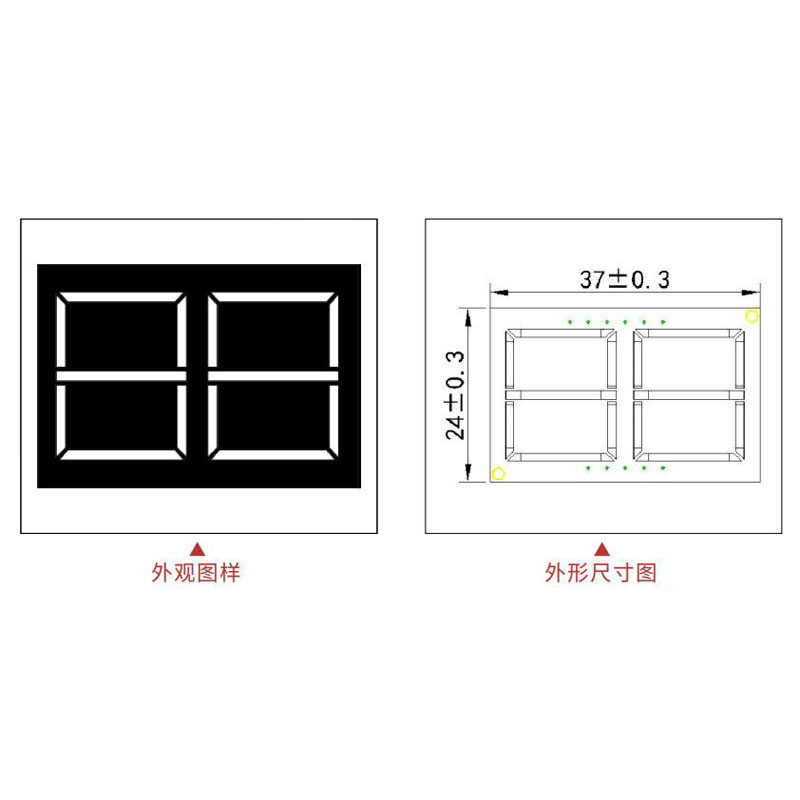

Drawings
Electrical Parameters
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient test) | V |
| Operating Temperature Range | Topr | -20→75℃ | ℃ |
| Static Voltage | Var | 2000 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blu-ray | Luminous Intensity | IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage | VF | 2.6 | -- | 3.3 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
Address
Hongji E-Valley, No. 23 Tongji West Road, Nantou Town, Zhongshan City, Guangdong Province, China
Tel
Product model: RGB-5641ZH
Main materials: LED, PPO, etc.;
As the professional manufacturer, we would like to provide you SMD 7-Segment Display.It has a wide range of application scenarios, including household appliances, including air conditioners, microwave ovens, washing machines, air purifiers, disinfection cabinets, etc., electronic clocks, mobile power supplies, measuring tools, commercial products, such as advertising display screens, information display screens, stock market display screens, and digital signboards.
Product model: RGB-5631GH
Main materials: LED, PPO, etc.
You can rest assured to buy customized 7-Segment Led Display from us.The application scenarios are wide, including industrial, commercial, transportation, scientific research, home and other fields, and are used in production line equipment; price tags in shopping malls and supermarkets; interest rate display screens, stock quote display screens; information display screens at transportation hubs; traffic light countdown timers and other products.
Guangzhou RGB Optoelectronic Technology Co., Ltd. was founded in Guangzhou in 2005. The company's main products are LED Segment Displays, LCD display, LED Module and Customized LED Color Displays. Our products are well-known in the market for their high-end, high quality, high reliability, and high environmental applicability, and are widely used in various household appliances.
