Model |
Material | Color | Description |
| 24065-1 | GaAlAs | White/Blue/Red | Common Yang |
| 24065-2 | GaAlAs | White/Blue/Red | Common cathode |
| Note: The display effect of Digital Color Screen can be customized according to customer needs. | |||

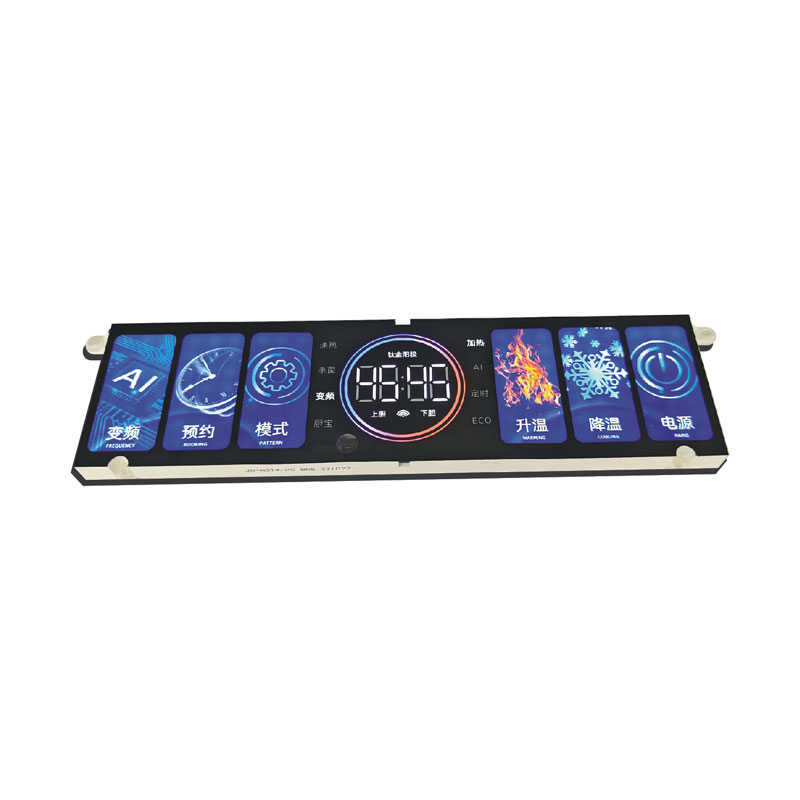

As the professional manufacturer, we would like to provide you Digital Color Screen. In recent years, our factory has continuously expanded its production force and further tightened its technical strength, and has formed a benign enterprise operation mechanism. Welcome customers at home and abroad to cooperate sincerely and create brilliance together.
1. This Digital Color Screen is rich in color and can display white light, red light, blue light, green light..., different color effects; it can also realize the combination of different color masks to meet various color needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The Digital Color Screen can be customized in size and shape according to customer requirements to match the customer's product use;
4. The Digital Color Screen has good display effect, high brightness and high contrast. It can be used in an environment with high light illumination, making the picture clearer and more delicate;
5. This product is energy-saving and environmentally friendly, with a long life. Our company's products are of excellent material selection, advanced processing technology, long product light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle are our two major advantages, allowing your project to be quickly promoted and seize market opportunities

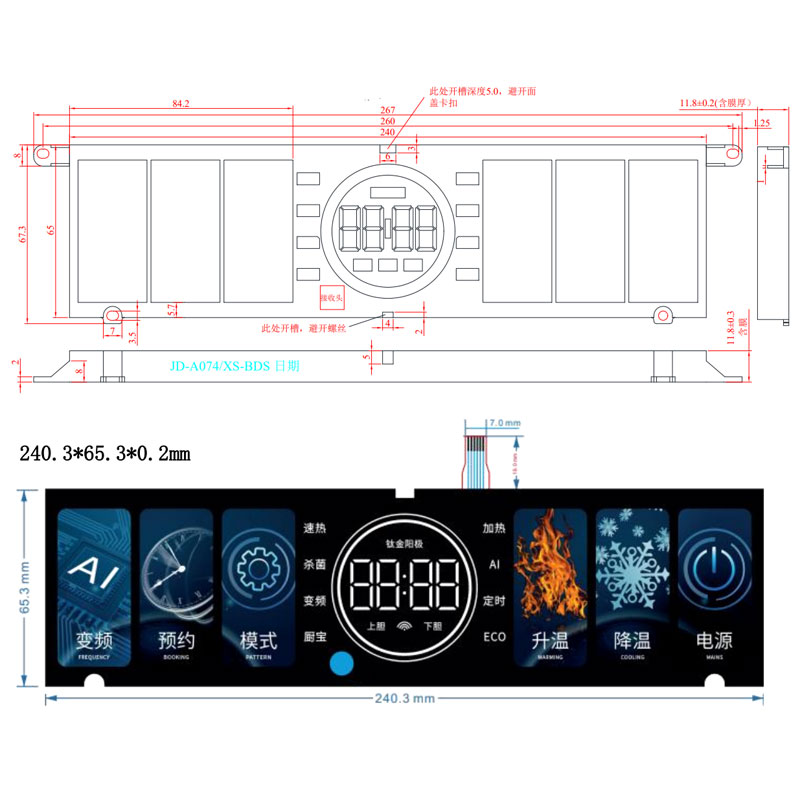

Drawings
Electrical parameters
| Parameter | Symbol | Maximum Rating | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient test) | V |
| Operating Temperature Range | Topr | -20→75℃ | ℃ |
| Static Voltage | Var | 2000 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blu-ray |
Luminous Intensity |
IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage | VF | 2.6 | -- | 3.3 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
