| Model | Material | Color | Description |
| 18824-1 | GaAlAs | White | Common anode |
| 18824-2 | GaAlAs | White | Common cathode |

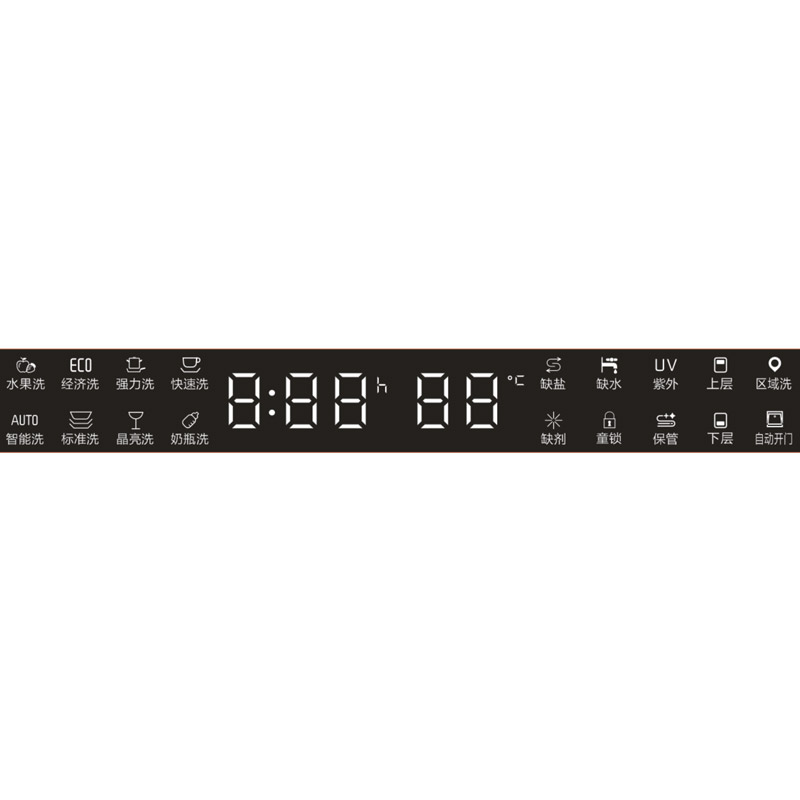

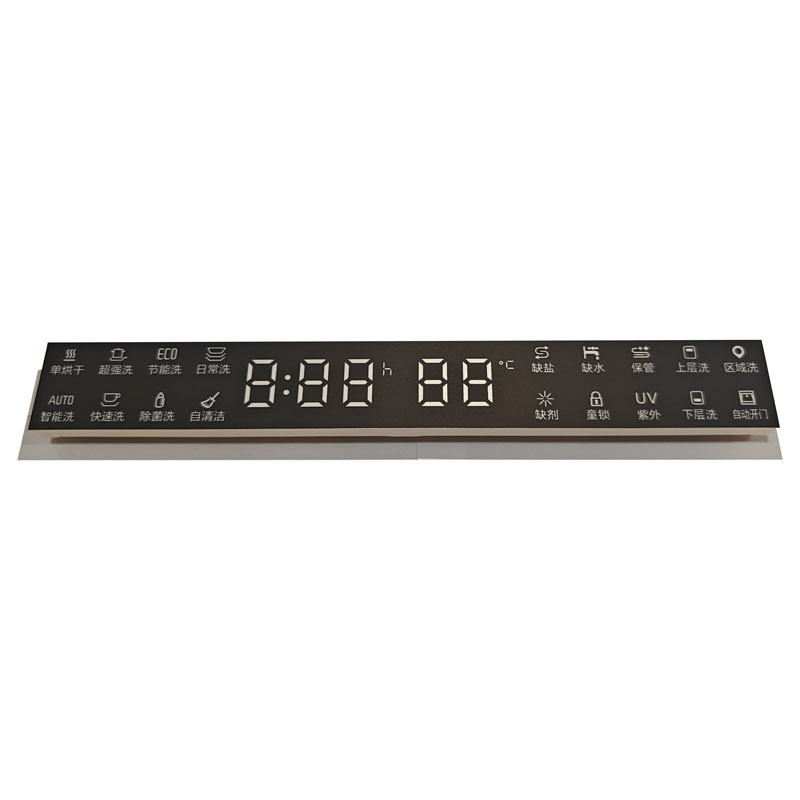

| Note: The Dishwasher Digital Color Screen effect can be customized according to customer needs. | |||
1.You can rest assured to buy customized Dishwasher Digital Color Screen from us.The display has rich colors, and can display white light, red light, blue light, green light, etc., with different color effects; it can also realize the combination of different color masks to meet various color needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The product can be customized in size and shape according to customer requirements to match the customer's product use;
4. The product has good display effect, high brightness and high contrast, and can be used in an environment with high light illumination, making the picture clearer and more delicate;
5. Energy saving and environmental protection, long life, our company's products are of excellent material selection, advanced processing technology, long product light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle are our two major advantages, allowing your project to be quickly promoted and seize the market opportunity.

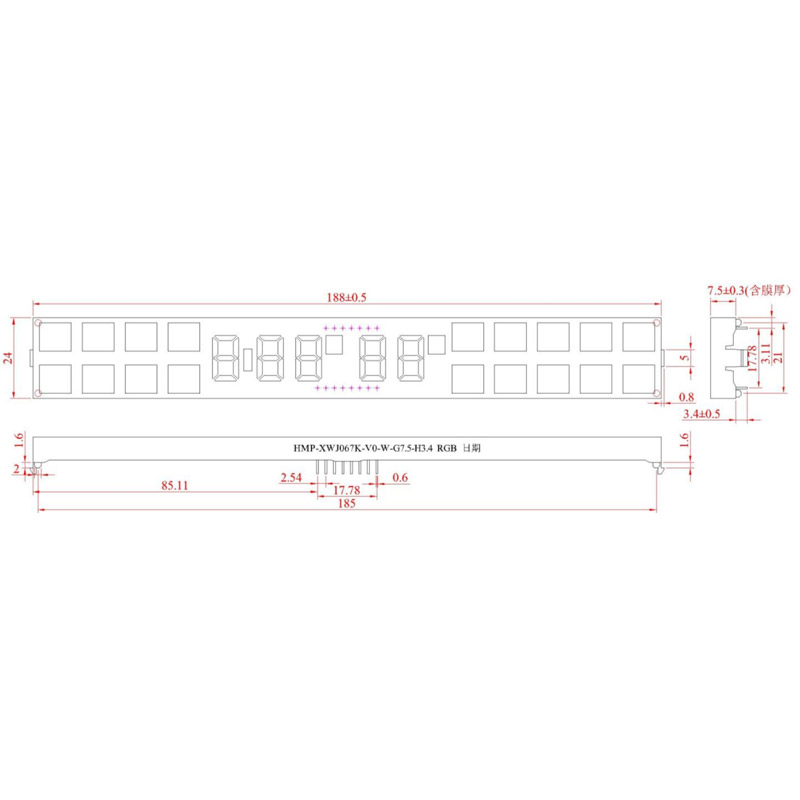

Drawings
Electrical Parameters
| Parameter | Symbol | (Maximum Rating) | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient Test) | V |
| Operating Temperature Range | Topr | —20—80℃ | ℃ |
| Static Voltage | Var | 2000 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blue | Luminous Intensity | IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage） | VF | 2.6 | -- | 3.5 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
