Model |
Material | Color | Description |
| 19265-1 | GaAlAs | Red light | Common cathode |
| 19265-2 | GaAlAs | Red light | Common Yang |
| The color and shape of Graphic LED Display can be customized according to customer needs | |||
You can rest assured to buy customized Graphic LED Display from us. Since the establishment of the factory, there have been more than ten years of professional production experience, with its own scientific and technological innovation spirit, accumulated project practice experience, continuous improvement of research and development strength, has a group of excellent technology, experienced team, has formed a benign enterprise operation mechanism. Welcome customers at home and abroad to sincerely cooperate and create brilliance!
1. The Graphic LED Display has rich display colors, and can display white light, red light, blue light, green light and other colors of light, with different color effects; it can also realize the display of different color combinations to achieve dazzling effects;
2. Low power consumption, high reliability, DC 2.6~3.6V power supply, can be used normally in low temperature -20 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The product provides customized services to meet your personalized requirements
4. Clear display: Clearly display information such as numbers, letters and symbols, especially in low light environments, its brightness performance is better, making the display effect more prominent;
5. Long life and high reliability: Due to the simple structure of the Graphic LED Display and no mechanical moving parts, it has a long life, is not easy to damage, and has high reliability. ;
6. The Graphic LED Display has high cost performance and extremely short delivery cycle, and can receive satisfactory products in the shortest time.

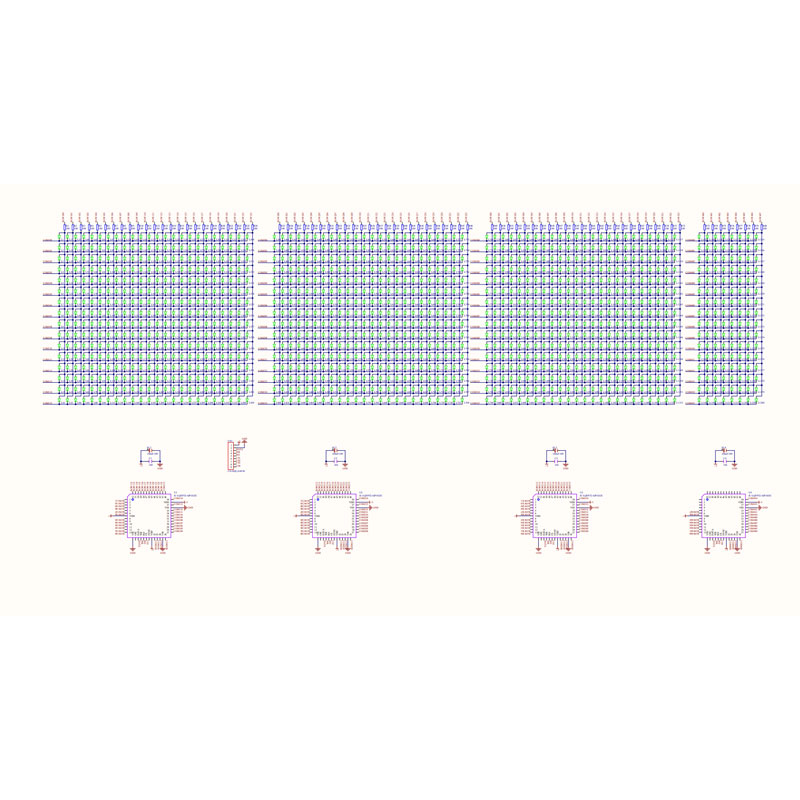

Drawings
Electrical parameters
| Parameter | Symbol | (Maximum Rating) | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 25 | mA |
| Peak Forward Current | IFP | 150 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient test) | V |
| Operating Temperature Range | Topr | -20→75℃ | ℃ |
| Static Voltage | Var | 500 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blu-ray |
Luminous Intensity |
IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage | VF | 2.6 | -- | 3.6 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
