Model |
Material | Color | Description |
| 5631GH-1 | GaAlAs | White light | Common cathode |
| 5631GH-2 | GaAlAs | White light | Common Yang |
| Note: The color of this Three Digit 7-Segment LED Display can be customized according to customer needs | |||
You can rest assured to buy Three Digit 7-Segment LED Displays from our factory. We persist in delivering top-class product quality, providing end-to-end bespoke solutions and unparalleled service to our clients.
1. This Three Digit 7-Segment LED Display has rich display colors, and can display white light, red light, blue light, green light and other different colors of light, and different color effects; it can also realize the display of different colors and combinations to achieve colorful effects;
2. Low power consumption, high reliability, DC 2.6~3.6V power supply, can be used normally in low temperature -20 ℃/high temperature 75 ℃ environment; at the same time, through the epoxy resin potting, it can achieve moisture-proof and waterproof functions;
3. The Three Digit 7-Segment LED Display structure is compact, whether it is size, color or function, our products can be customized;
4. The product has good display effect and high brightness. It can be used in an environment with high light illumination, and the display content is clear;
5. Long life, our company's products are of excellent material selection, advanced processing technology, long light decay cycle, and strong anti-yellowing ability;
6. The product has high cost performance and short delivery cycle.

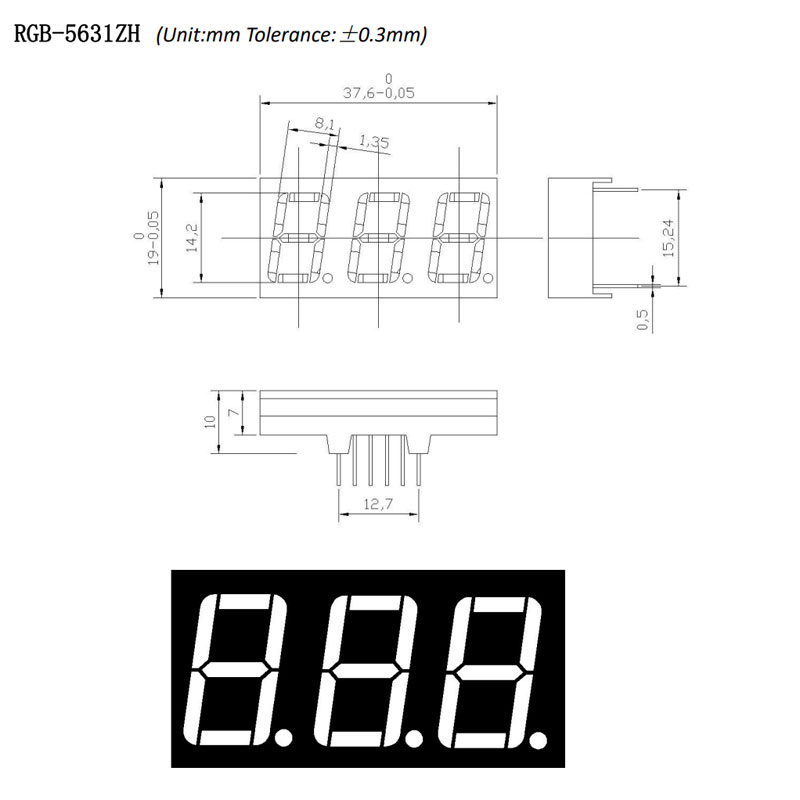

Drawings
Electrical parameters
| Parameter | Symbol | (Maximum Rating) | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 25 | mA |
| Peak Forward Current | IFP | 150 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient test) | V |
| Operating Temperature Range | Topr | -20→75℃ | ℃ |
| Static Voltage | Var | 500 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blu-ray |
Luminous Intensity |
IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage | VF | 2.6 | -- | 3.6 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
