| Model | Material | Color | Description |
| 13777-1 | GaAlAs | White | Common anode |
| 13777-2 | GaAlAs | White | Common cathode |
| Note: The Water Purifier Digital Color effect can be customized according to customer needs. | |||
1.As the professional manufacturer, we would like to provide you Water Purifier Digital Color Screen.Rich in colors, it can display white light, red light, blue light, green light..., different color effects; it can also realize the combination of different color masks to meet various display needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The Water Purifier Digital Color Screen can be customized in size and shape according to customer requirements to match the customer's product use;
4. The Water Purifier Digital Color Screen has good display effect, high brightness and high contrast. It can be used in an environment with high light illumination, making the picture clearer and more delicate;
5. Energy saving and environmental protection, long life, our company's products are excellent in material selection, advanced processing technology, long product light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle are the reasons for you to choose us. We can enable your project to be quickly promoted and seize the market opportunity

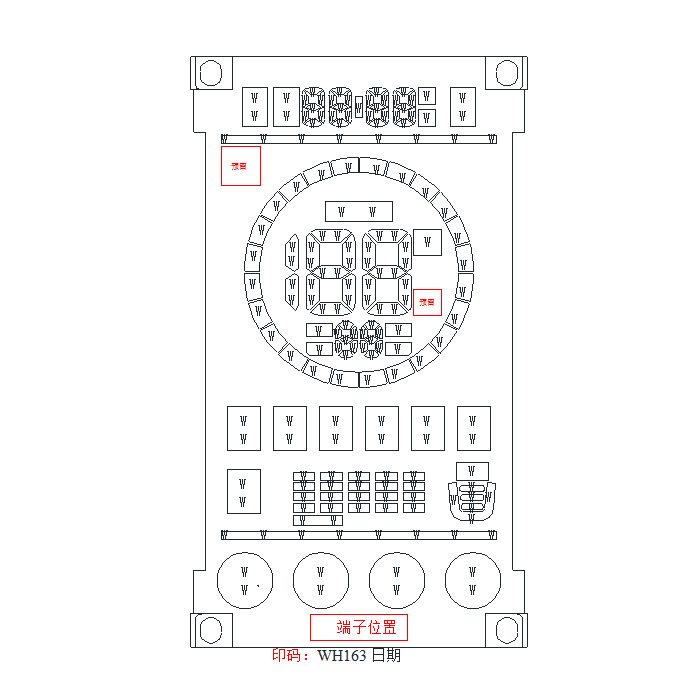

Drawings
Electrical Parameters
| Parameter | Symbol | (Maximum Rating) | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient Test) | V |
| Operating Temperature Range | Topr | —20—80℃ | ℃ |
| Static Voltage | Var | 2000 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Ice Blue | Luminous Intensity | IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage） | VF | 2.6 | -- | 3.5 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
