| Model | Material | Color | Description |
| 20031-1 | GaAlAs | True white | Common anode |
| 20031-2 | GaAlAs | True white | Common cathode |

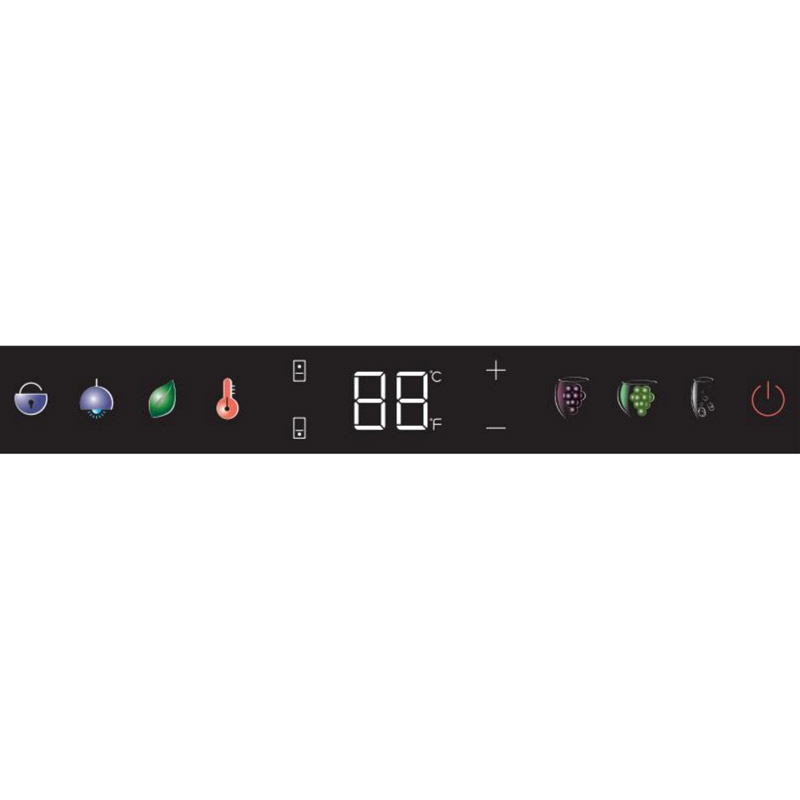

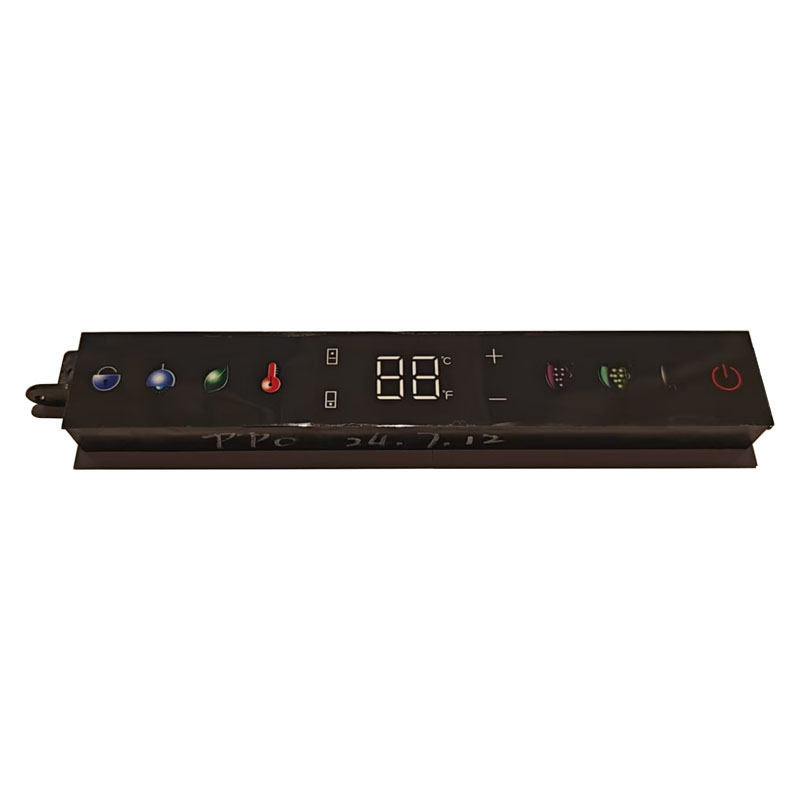

| Note: The Wine Cabinet Digital Color Screen effect can be customized according to customer needs. | |||
1.As the professional manufacturer, we would like to provide you high quality Wine Cabinet Digital Color Screen.Rich in colors, it can display white light, red light, blue light, green light..., different color effects; it can also realize the combination display of different color masks to meet various color needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The Wine Cabinet Digital Color Screen can be customized according to customer requirements to match customer products;
4. The Wine Cabinet Digital Color Screen has good display effect, high brightness and high contrast. It can be used in a high-brightness environment, making the display clearer and more delicate;
5. Energy saving and environmental protection, long life, our products are excellent in material selection, advanced processing technology, long LED lamp light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle are our two major advantages, allowing your project to be quickly promoted and seize market opportunities

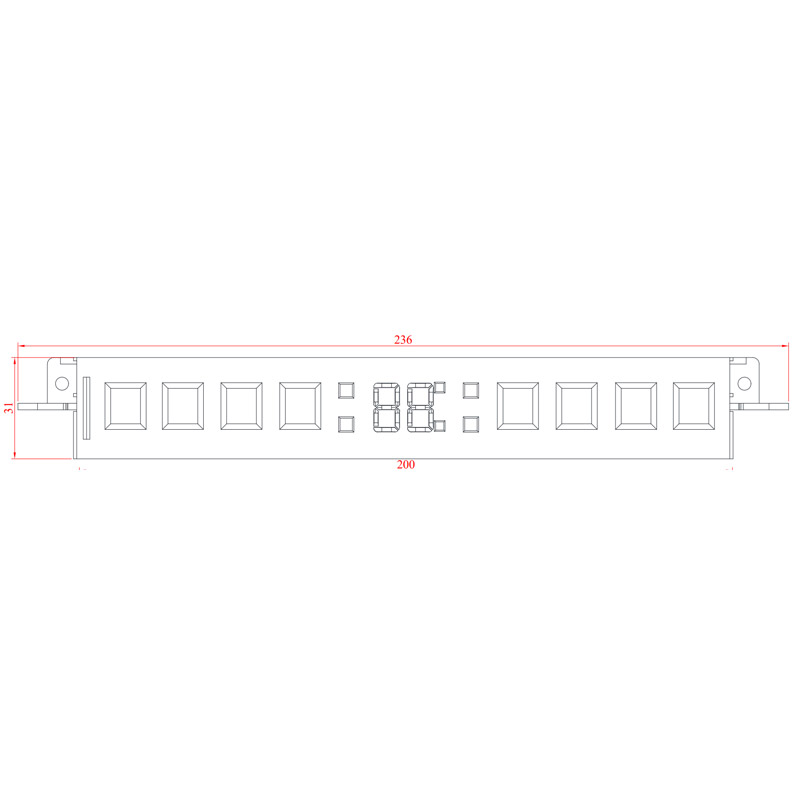

Drawings
Electrical Parameters
| Parameter | Symbol | (Maximum Rating) | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient Test) | V |
| Operating Temperature Range | Topr | —20—80℃ | ℃ |
| Static Voltage | Var | 2000 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blue | Luminous Intensity | IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage） | VF | 2.6 | -- | 3.5 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
